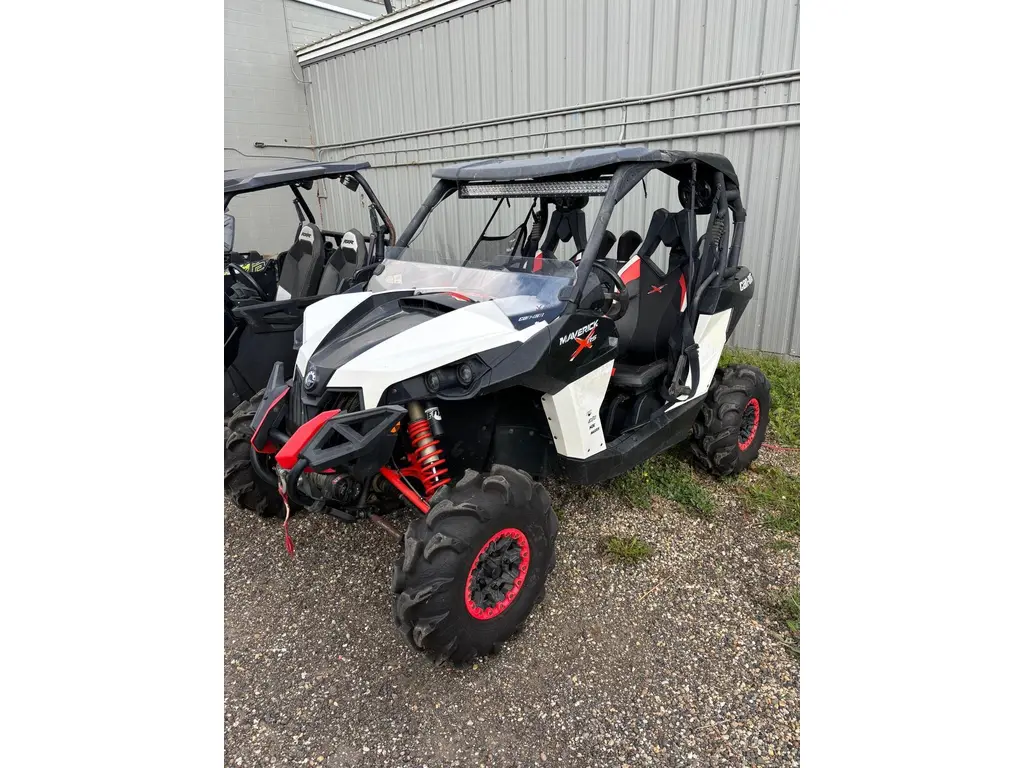

2014 Can-Am Maverick

Notes:

**Engine Type:** V-twin, SOHC, 8-valve (4-valve / cyl) **Displacement:** 976 cc **Bore and Stroke:** 91 x 75 mm **Cooling:** Liquid **Fuel System:** iTC™ with EFI and 54 mm Throttle Body, 2 Siemens® VDO injectors **Front Suspension:** Type: Double A-arm; Shocks: FOX® PODIUM® X Performance RC2.5 HPG Piggyback shocks with dual speed compression, rebound and preload adjustments **Front Brakes:** Dual 214 mm ventilated disc brakes with hydraulic twin-piston (27 mm) calipers **Front Tire:** 27 x 9 x 12 in. (68.6 x 22.9 x 30.5 cm) **Rear Suspension:** Type: Torsional Trailing A-arms independent rear suspension (TTA) with sway bar; Shocks: FOX® PODIUM® X Performance RC2.5 HPG Piggyback shocks with dual speed compression, rebound and preload adjustments **Rear Brakes:** Dual 214 mm ventilated disc brakes with hydraulic single-piston (32 mm) caliper **Rear Tire:** 27 x 11 x 12 in. (68.6 x 27.9 x 30.5 cm) **Dry Weight:** 1,297 lb. (588 kg) **Wheelbase:** 84.3 in. (214.1 cm) **Front Travel:** 14 in. (35.6 cm) **Rear Travel:** 14 in. (35.6 cm) **Ground Clearance:** 13 in. (33 cm) **Fuel Capacity:** 10 gal. (37.8 L) **Rack Capacity:** 200 lb. (91 kg) with LinQ™ quick-attach accessory system **Transmission:** CVT, sub-transmission with high, low, park, neutral & reverse. Standard engine braking **Drive System:** Selectable 2WD / 4WD shaft driven with Visco-Lok® QE auto-locking front differential **Speedometer:** Standard **Tachometer:** Standard **Odometer:** Standard **Colors:** White, Black & Can-Am Red
