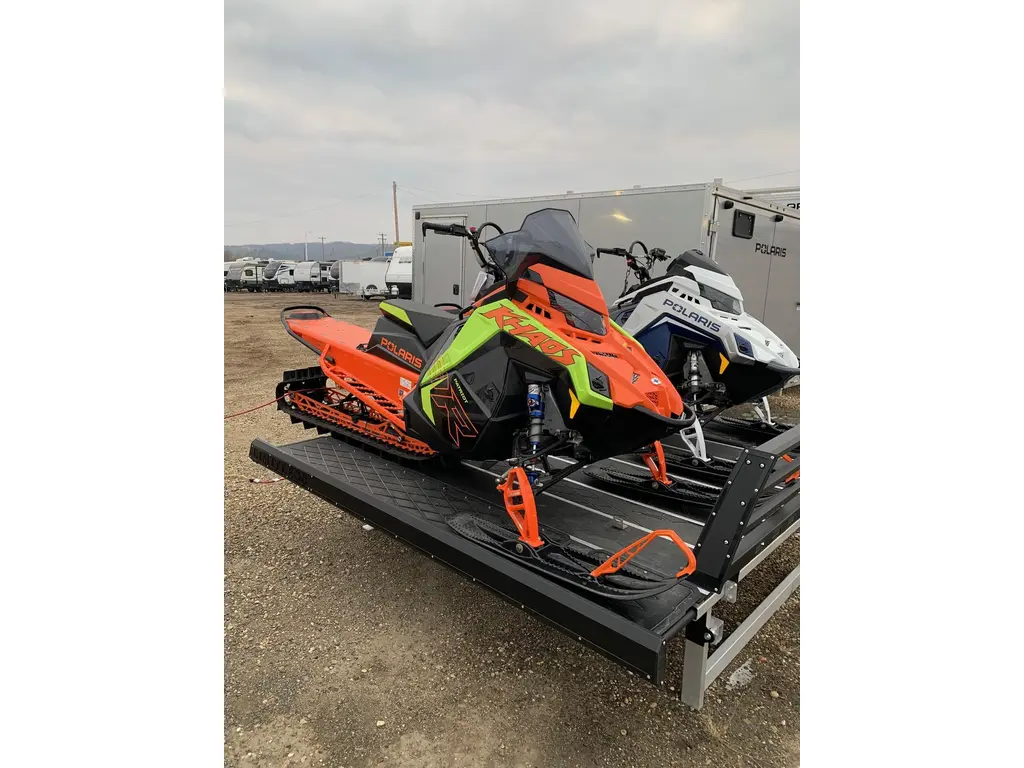

2023 Polaris 9R RMK KHAOS 165

Notes:

**Engine Type:** Horizontal In-line **Displacement:** 54.9 cu. in. (900 cc) **Cylinders:** 2 **Bore x Stroke:** Bore: 3.46 in. (88 mm); Stroke: 2.91 in. (74 mm) **Engine Cooling:** Liquid **Carburetion:** Fuel Injected **Brake Type:** Hydraulic Disc **Drive Clutch:** P-22 / TEAM LWT **Driven Clutch:** Continuously Variable (CVT) **Front Suspension:** Independent A-Arm **Front Travel:** 9.5 in. (241 mm) **Rear Travel:** 16 in. (406 mm) **Ski Type:** Plastic **Ski Stance:** Min: 36 in. (914 mm); Max: 38 in. (965 mm) **Track Type:** Series 8 **Track Dimensions:** W: 15 in. (381 mm); L: 165 in. (4191 mm); Lug Height: 2.75 in. (66 mm) **Speedometer:** Standard **Tachometer:** Standard **Odometer:** Standard **Fuel Capacity:** 11 gal. (41.6 L) **Dry Weight:** 429 lb. (194.6 kg.) **Windshield:** Standard **Electric Start:** Pull **Reverse:** Yes **Mirrors:** Optional
